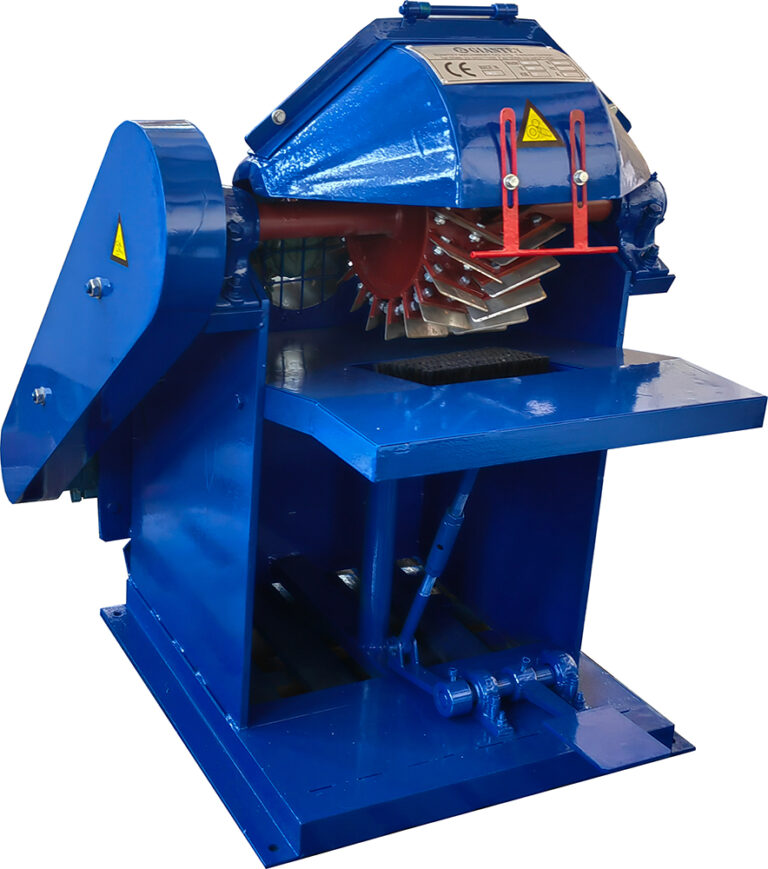

卧式拉软（磨革）机 GHS-130-S
天津佳德昌泰机械有限公司的产品GHS-130-S型拉软机可在羊皮生产流程中用来对皮张进行伸展和拉软作业， 是皮毛一体加工中的重要设备。本品属标准机型配置，有一个刷带和一组导角可调的刀片组成的工作辊，若装上磨石（stone）即可进行磨革。工作传送带是用牛皮制作的，由液压驱动。皮张在传送带上的压力，接触面积，伸展量以及工作速度均可随意调节。
配有吸尘系统、 电控箱和相关的安全保护器。
Tianjin Giantey Machinery Co., Ltd. is very famous for making leather machines, the Horizontal Staking Machine, GHS-130 WITHOUT BUFFING STONE OR GHS-130-S WITH BUFFING STONE, is one of them. It is well used for staking and stretching the lambskins in a different stage of processing, it is a very important machine for double-face tanning and production.
As required, the machine could be equipped with buffing stones arranged in different size and the small blades fastened by screws at different places around the axle at certain angle, this makes the machine work perfect to stake the skins into larger ones and do the buffing for the skins looking like silk with suede.
The machine has a cow-hide leather feeding system, it could well be adjusted tight and loose according to the requirement of working, this system is driven by a hydraulic motor with adjustable working speed.
技术参数表：
Technical data:
| 参数名称Items | 单 位Unit | 数 值Parameter |
| 操作人数Operator | 人Person | 1 |
| 驱动方式Driving style | 电动、液压Electric & Hydraulic | |
| 有效加工宽度Effective working width | 毫 米mm | 1300 |
| 小时生产能力Hourly production rate | 张/时Skin/hour | 120－230 |
| 辊子驱动功率Working cylinder power | 千 瓦Kw | 5.6 |
| 泵站功率Hydraulic station power | 千 瓦Kw | 4.0 |
| 吸尘功率Dust suction power | 千 瓦Kw | 3.0 |
| 牛皮传送带工作速度Leather feeding speed | 米/分M/Min. | 1~13 |
| 作业面积 Working area | 米M | 3.20×1.99 |
| 净 重Net weight | 公 斤Kg | 1360 |
| 毛 重Gross weight | 公 斤Kg | 1800 |
| 装箱外形尺寸Packing dimensions | 米M | 2.89×1.55×1.88 |
| 体 积Volume | 立方米Cubic M | 7.88 |
| 总 功 率Total power | 千 瓦Kg | 12.9 |
