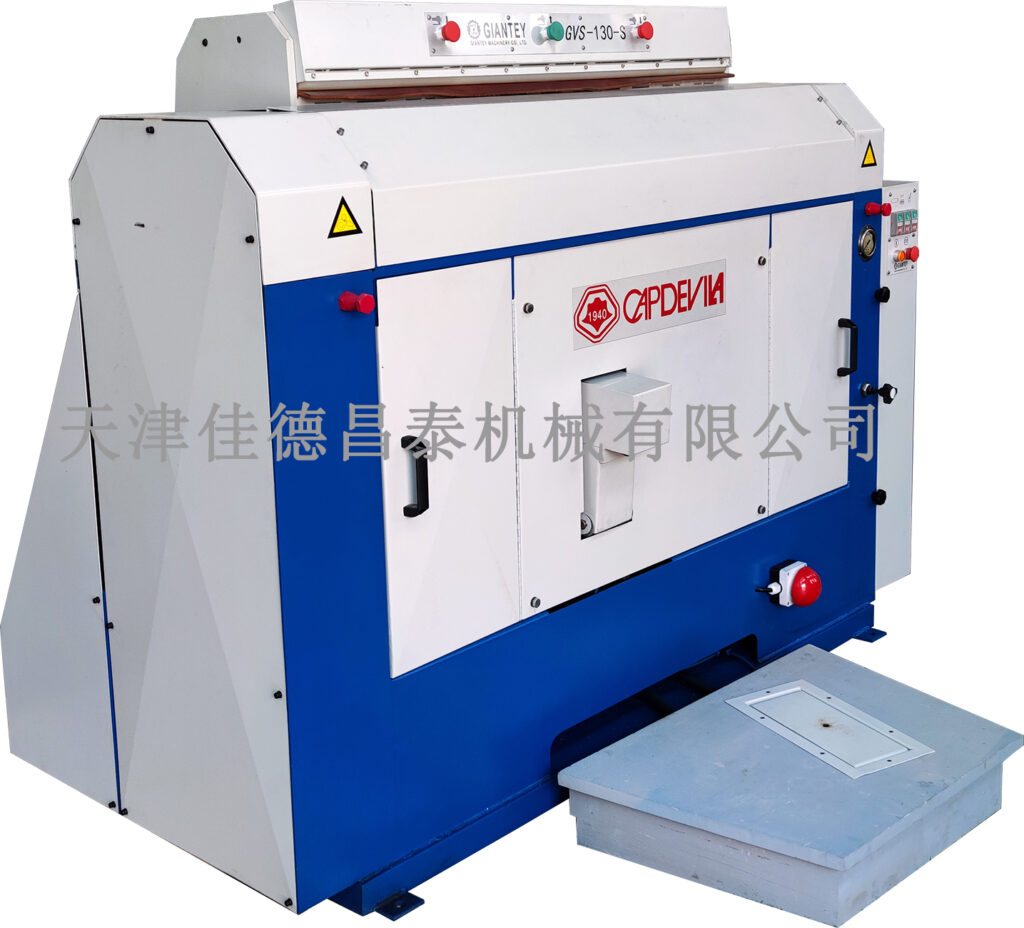

立式拉软（磨革）机 GVS-130-S
天津佳德昌泰机械有限公司的产品GVS-130-S型伸展拉软磨革机可在皮毛一体生产流程的任何环节中进行伸展和拉软作业，若装上磨石（stone）即可进行磨革。伸展和拉软是皮革和皮毛一体加工中的环节，特别是皮毛一体的加工，立式拉软机是不可或缺的。液压驱动工作机构的动作和运行速度均可调节。皮张由气动夹具夹紧。
本产品属标准机型配置，包含一个装有多排刷子和可调导角的叶片的辊子。牛皮革制压力托垫可以调节其对被加工羊皮的接触面积和工作压力。
随机配置吸尘系统、电控箱和相应的安全保护器。
Tianjin Giantey Machinery Co., Ltd. is very famous for making leather machines, the Vertical Stretching ( or Staking) Machine, GVS-130 WITHOUT BUFFING STONE OR GVS-130-S WITH BUFFING STONE, is one of them. It is well used for staking and stretching the lambskins in different stages for processing double-face, it is a very important machine for double-face tanning and production.
As required, the machine could be equipped with buffing stones arranged in different size and the small blades fastened by screws at different places around the axle at a certain angle, this makes the machine work perfect to stake or stretch the skins into larger ones and also do the buffing for the skins looking like silk with suede.
The machine has a fixed cow-hide leather feeding system, it could well be adjusted tight and loose according to the requiement of working, this cow-hide leather is driven by two hydraulic cylinders.
This machine is well used in the final processing of double-face during the production.
技术参数表：
Technical data:
| 参数名称Items | 单 位Unit | 数 值Parameter |
| 操作人数Operator | 人Person | 1 |
| 驱动方式Driven style | 电动、气动、液压, Elctric, Pneomatic, and Hydraulic | |
| 有效加工宽度Effective working width | 毫 米mm | 1300 |
| 小时生产能力Production rate | 张/时Skins/hour | 120 |
| 辊子驱动功率Cylinder driven power | 千 瓦Kw | 4 |
| 泵站功率Hydraulic station power | 千 瓦Kw | 5.5 |
| 吸尘功率Suction power | 千 瓦Kw | 3 |
| 空压机压力Pressed Air | 大气压Atm | 2~5 |
| 进气管口径Entry pipe diameter | 毫 米mm | 13 |
| 夹具纵向行程(Lengthwise) Clutching stroke | 毫 米mm | 800 |
| 作业面积Working area | 米m | 2.08×1.64 |
| 净 重Net | 公 斤Kg | 1195 |
| 毛 重Gross | 公 斤Kg | 1495 |
| 装箱外形尺寸Packing dimensions | 米m | 2.80×1.50×1.88 |
| 体 积Volume | 立方米Cubic m | 7.6 |
| 总 功 率Total Power | 千 瓦Kw | 12.5 |
