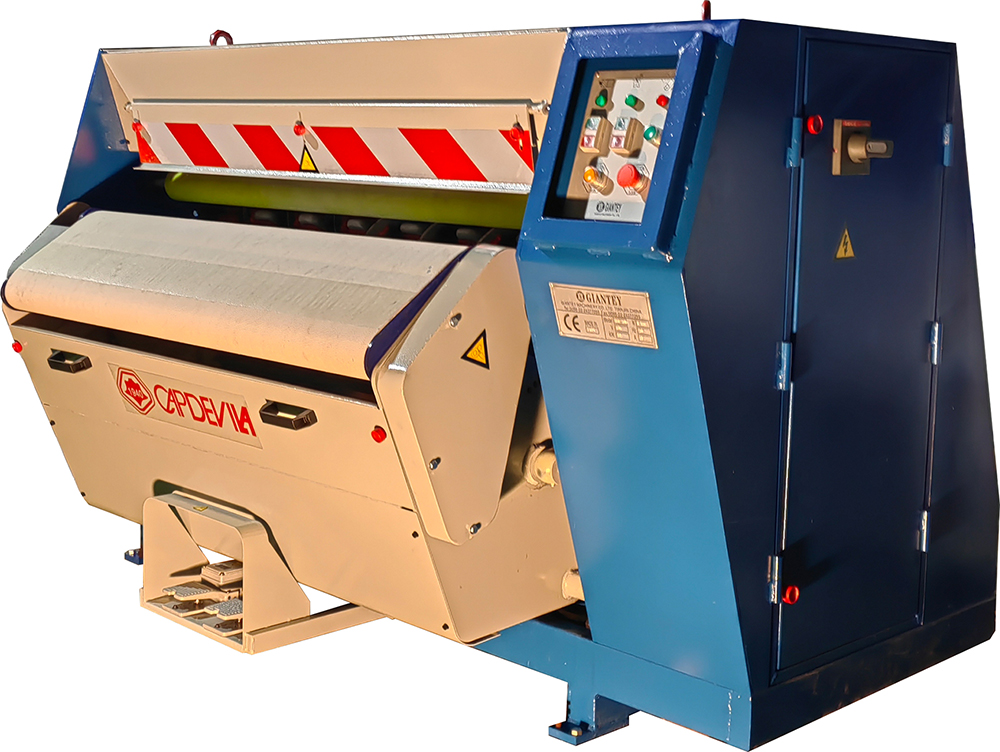

GREAT HORIZONTAL STAKING MACHINE GGHS-150
Tianjin Giantey Machinery Co., Ltd. is very famous for making leather machines, the Horizontal Staking Machine, GGHS-150 WITHOUT BUFFING STONE OR GGHS-150-S WITH BUFFING STONE, is one of them. It is well used for staking and stretching the lambskins in a different stage of processing, it is a very important machine for double-face tanning and production.
As required, the machine could be equipped with buffing stones arranged in different size and the small blades fastened by screws at different places around the axle at a certain angle, this makes the machine work perfect to stake the skins into larger ones and do the buffing for the skins looking like silk with suede.
The machine has a cow-hide leather feeding system, it could well be adjusted? tight and loose according to the requirement of working, this system is driven by a hydraulic motor with adjustable working speed.
Technical data:
| Items | Unit | Parameter |
| Operator | Person | 1 |
| Driving style | Electric & Hydraulic | |
| Effective working width | mm | 1500 |
| Hourly production rate | Skin/hour | 180－250 |
| Working cylinder power | Kw | 5.6 |
| Hydraulic station power | Kw | 4.0 |
| Dust suction power | Kw | 3.0 |
| Leather feeding speed | M/Min. | 1~13 |
| Working area | M | 4.20×2.19 |
| Net weight | Kg | 1560 |
| Gross weight | Kg | 1800 |
| Packing dimensions | M | 3489×1.75×2.18 |
| Volume | Cubic M | 9.08 |
| Total power | Kg | 12.9 |
